Questions on Moments

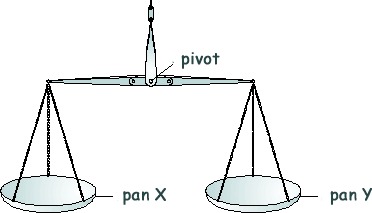

Q3. The drawing shows a very old set of scales. It can be used to check the weights of silver coins.

(a) Jack puts a silver coin in pan X. There is nothing in pan Y.

In which direction does pan X move?

(1 mark)

(b) The table shows the weights of five silver coins.

Silver Coin
A
B
C
D
E
weight in mN
112
106
120
112
98



Jack puts one coin in each pan of the scales.

Which two coins will make the scales balance?

(Give the letters).

(1 mark)

(c) Coin A is placed in pan X, and coin C is placed in pan Y.

In which direction does pan X now move?

(1 mark)

(d) In another experiment, coin B is placed in pan X, and one of the other coins is placed in pan Y.

Pan X goes down. Which coin is in pan Y?

Give the letter.

(1 mark)

(e) Jack knows the weights of the five silver coins in the table. He also has a gold coin.

Explain how he could use the silver coins and the scales to find the approximate weight of the gold coin.

(2 marks)



Total 6 marks
