GCSE Questions: Static Electricity

Q9. When two different materials listed below are rubbed together they become electrostatically charged. The polarity of the material that is higher in the list would become positive.

glass
nylon
wool
silk
polyester
PVC



(a) The diagram below shows a nylon rod being rubbed with a silk cloth.

(i) Explain why both materials become electrostatically charged. Include in your answer the polarity of each material.

[3 marks]

(ii) What difference would it have made if a PVC rod had been rubbed with the silk cloth rather than a nylon rod?

[1 mark]

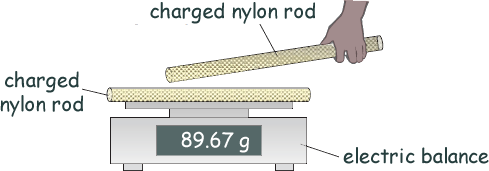

(b) The charged nylon rod is put onto an electric balance.

A second identically charged nylon rod is moved towards the rod on the balance, as shown in the diagram above. Explain what will happen to the reading on the balance as the two rods get closer to each other. (The rods do not touch or discharge).

[3 marks]

(c) A driver often becomes electrostatically charged when in a car. This happens because the driver's clothing rubs against the car seat.

(i) The charge on a driver who has just got out of his car is 3.0 mC.

When the driver starts to close the car door a spark jumps across the air gap between the driver and the door. The spark transfers 27 J of energy.

Calculate the potential difference between the driver and the car as the driver starts to close the door.

[4 marks]

(ii) A scientist investigated how the charge on a driver changed when the driver wore clothes made from different materials. The results from the investigation are given in the table below:

Type of material
Charge on the driver /mC
cotton
1.4 to 1.7
wool
2.4 to 2.5
polyester
3.5 to 3.8



A student looked at the data and concluded:

'The charge on a driver will always be less if the driver wears clothes made from cotton rather than any other type of material.'

Suggest two reasons why this may not be a valid conclusion.

[2 marks]

[Total 13 marks]
