GCSE Questions: Forces

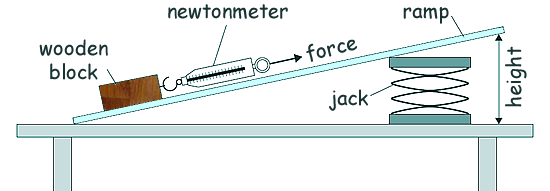

Q10. Willow investigated how the height of a ramp affected the force needed to pull a wooden block up the ramp at a steady speed. The diagram below shows the apparatus she used.



(a) To pull the wooden block up the ramp Willow must do work against two forces. The force of friction is one, name the other.

[1 mark]

(b)

(i) What was the independent variable in this investigation?

[1 mark]

(ii) What was a control variable in this investigation?

[1 mark]

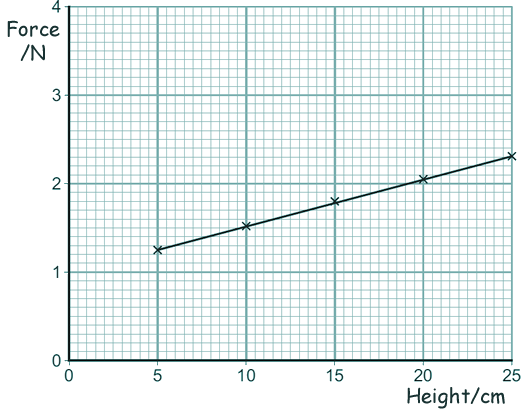

(c) The results from the investigation are plotted in the graph below:




(i) How do you know from the graph, that none of Willow's results were anomalous?

[1 mark]

(ii) Use the graph to estimate the force needed to pull the wooden block along the ramp when the ramp is lying flat on the bench.

[1 mark]

(iii) What conclusion should be made from these results?

[2 marks]

(iv) Xander used the same apparatus to repeat the investigation. He increased the force of friction by fixing a rough material to the bottom of the wooden block.

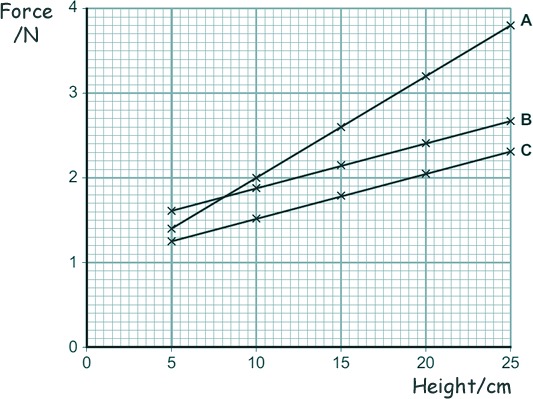

Look at the graph above. Which of the result plots A, B or C is most likely to show Xander's results?

[1 mark]

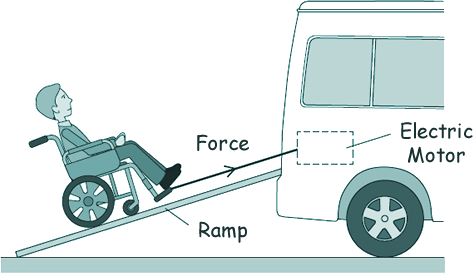

(d) The next diagram shows how a ramp is used to help move a child in a wheelchair into a car. The wheelchair is pulled up the ramp by a cable attached to an electric motor.

A force of 260 N is used to pull the child and wheelchair up the ramp. The ramp is 1.2 m long.

Calculate the work done to pull the child and wheelchair up the ramp.

[3 marks]

[11 Marks TOTAL]
