Q5.

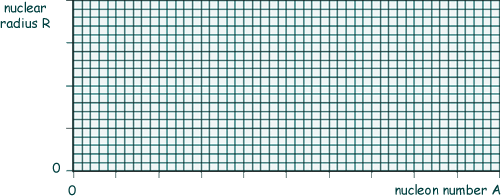

(a) On the graph paper below sketch a graph to show how the radius, R, of a nucleus varies with its nucleon number, A.

You need to sketch a graph starting (steeply) near/at the origin and decreasing in gradient

It is rather misleading that they used graph paper as you may have thought you would have to mark values on the axes - not needed!

(1 mark)

(b) The radius of a gold-197 nucleus is 6.87 × 10–15 m.

(i) Show that the density of this nucleus is about 2.4 × 1017 kg m–3.

mass = 197 x 1.67 x 10-27= 3.29 x 10-25 kg

volume = 4/3 (πr3) = 4π x (6.87 × 10–15)3 /3 = 1.39 x 10-42 m3

density = mass/volume = 2.4 × 1017 kg m-3

(2 marks)

(ii) Using the data from part b(i) calculate the radius of an aluminium-27 nucleus, .

RAl3/AAl = RAu3/AAu

RAl3= RAu3AAl/AAu

RAl3= (6.87 × 10–15)3x 27/197

RAl= 3.54 x 10-15m

Or substitute into the equation... Or use the fact that the density will be the same

(2 marks)

(c) Nuclear radii have been investigated using α particles in Rutherford scattering experiments and by using electrons in diffraction experiments.

Make comparisons between these two methods of estimating the radius of a nucleus. Detail of any apparatus used is not required. This was often ignored!

• the principles on which each experiment is based including a reference to an appropriate equation
• an explanation of what may limit the accuracy of each method

If you don't include all three you cannot be high level!

Your writing should be legible and the spelling, punctuation and grammar should be sufficiently accurate for the meaning to be clear. Your answer will be assessed holistically.

The answer will be assigned to one of three levels according to the following criteria.

High Level (Good to excellent): 5 or 6 marks

The information conveyed by the answer is clearly organised, logical and coherent, using appropriate specialist vocabulary correctly. The form and style of writing is appropriate to answer the question.

The candidate makes 5 to 6 points concerning the principles of the method, the limitations to the accuracy and the advantages and disadvantages of a particular method

Intermediate Level (Modest to adequate): 3 or 4 marks

The information conveyed by the answer may be less well organised and not fully coherent. There is less use of specialist vocabulary, or specialist vocabulary may be used incorrectly. The form and style of writing is less appropriate. The candidate makes 3 to 4 points concerning the principles of the method, the limitations to the accuracy and the advantages and disadvantages of a particular method

Low Level (Poor to limited): 1 or 2 marks

The information conveyed by the answer is poorly organised and may not be relevant or coherent. There is little correct use of specialist vocabulary. The form and style of writing may be only partly appropriate. The candidate makes 1 to 2 points concerning the principles of the method, the limitations to the accuracy and the advantages and disadvantages of a particular method

The explanation expected in a competent answer should include a coherent selection of the following points concerning the physical principles involved and their consequences.

principles

• α scattering involves coulomb or electrostatic repulsion
• electron diffraction treats the electron as a wave having a de Broglie wavelength
• some reference to an equation, for example λ = h/mv ; eV = mv2/2 ; Qq/4πεor = Eα ; sinθ = 0.61λ/R
• reference to first minimum for electron diffraction

accuracy

• α's only measure the least distance of approach, not the radius
• α's have a finite size which must be taken into account
• electrons need to have high speed/kinetic energy to have a small wavelength or wavelength comparable to nuclear diameter, the wavelength determines the resolution
• the wavelength needs to be of the same order as the nuclear diameter for significant diffraction
• requirement to have a small collision region in order to measure the scattering angle accurately
• importance in obtaining monoenergetic beams
• cannot detect alpha particles with exactly 180o scattering
• need for a thin sample to prevent multiple scattering

• α-particle measurements are disturbed by the nuclear recoil
• mark for α-particle measurements are disturbed by the strong nuclear force when coming close to the nucleus or electrons are not subject to the strong nuclear force.
• a second mark can be given for reference to strong nuclear force if they add electrons are leptons or alpha particles are hadrons.
• α's are scattered only by the protons and not all the nucleons that make up the nucleus
• visibility – the first minimum of the electron diffraction is often difficult to determine as it superposes on other scattering events

(6 marks)

(Total 11 marks)
